Compiling Code into Package Directories
Conventions for specifying pathnames vary on different platforms. In this chapter, we will use pathname conventions used on a Unix-based platform. While trying out the examples in this section, attention should be paid to platform dependencies in this regard—especially the fact that the separator characters in file paths for the Unix-based and Windows platforms are / and \, respectively.
As mentioned earlier, a package can be mapped on a hierarchical file system. We can think of a package name as a pathname in the file system. Referring to Example 6.1, the package name wizard.pandorasbox corresponds to the pathname wizard/ pandorasbox. The Java bytecode for all types declared in the source files Clown.java and LovePotion.java will be placed in the package directory with the pathname wizard/pandorasbox, as these source files have the following package declaration:
package wizard.pandorasbox;
The location in the file system where the package directory should be created is specified using the -d option (d for destination) of the javac command. The term destination directory is a synonym for this location in the file system. The compiler will create the package directory with the pathname wizard/pandorasbox (including any subdirectories required) under the specified location, and will place the Java bytecode for the types declared in the source files Clown.java and LovePotion.java inside the package directory.
Assuming that the current directory (.) is the directory /pgjc/work, and the four source code files in Figure 6.3a (see also Example 6.1) are found in this directory, the following command issued in the current directory will create a file hierarchy (Figure 6.3b) under this directory that mirrors the package structure in Figure 6.2, p. 327:
>
javac -d . Clown.java LovePotion.java Ailment.java Baldness.java
Note that two of the source code files in Figure 6.3a have multiple type declarations. Note also the subdirectories that are created for a fully qualified package name, and where the class files are located. In this command line, the space between the -d option and its argument is mandatory.

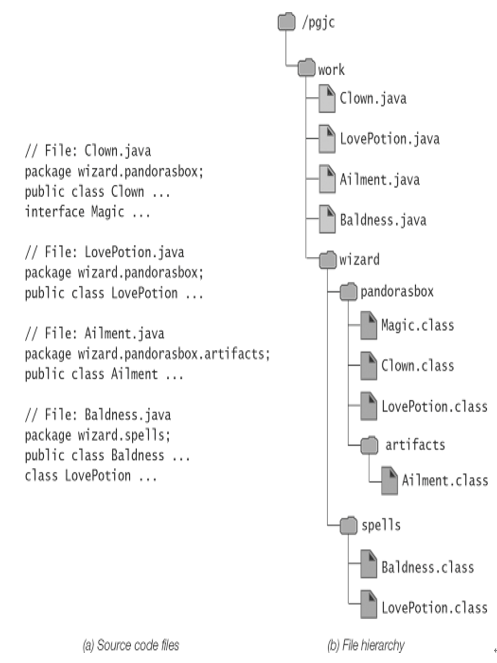

Figure 6.3 Compiling Code into Package Directories
The wildcard * can be used to specify all Java source files to be compiled from a directory. It expands to the names of the Java source files in that directory. The two commands below are equivalent to the command above.
>
javac -d . *.java
>
javac -d . ./*.java
We can specify any relative pathname that designates the destination directory, or its absolute pathname:
>
javac -d /pgjc/work Clown.java LovePotion.java Ailment.java Baldness.java
We can, of course, specify destinations other than the current directory where the class files with the bytecode should be stored. The following command in the current directory /pgjc/work will create the necessary packages with the class files under the destination directory /pgjc/myapp:
>
javac -d ../myapp Clown.java LovePotion.java Ailment.java Baldness.java
Without the -d option, the default behavior of the javac compiler is to place all class files directly under the current directory (where the source files are located), rather than in the appropriate subdirectories corresponding to the packages.
The compiler will report an error if there is any problem with the destination directory specified with the -d option (e.g., if it does not exist or does not have the right file permissions).
